OTHER SOLUTIONS
Natural Light

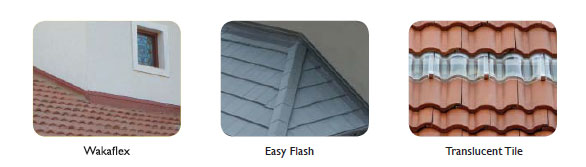

10) TRANSLUCENT TILE
Product Features: • Light transmissibility of 90-95% • Energy saving
(1 No. Translucent Tile is equivalent to 1 No. 75W bulb)
• Perfect integration on the roof with the Elabana tiles/Plano tiles
• Ensures complete water-tightness • Made of very strong material
Technical Details: • Made of Poly Methyl Meta Acrylate (PMMA)
• High UV resistance, preventing whitening • Comes with a set of screws
and tile clips for installation •Temperature resistance up to 80°C
Rain Water Channelling
11) VALLEY SHEET
Product Features: • Easy-to-install • Ribbed to prevent water back-fl ow
• Prevents water leakage at valley regions • Pre-fabricated bending lines
(3 in nos) for easy onsite foldings
Technical Details: • High quality aluminium bent valleys
•Can be folded on-site mathcing the roof angles without any tools
•Available in size 1.2 m x 36 cm
12) Luxla Rainwater Gutters
Product Features: • Modular in nature • Superior quality design made
in non-corrosive metal • Available with complete range of fittings and
accessories • Available in Round and Square profiles
Technical Details: • Higher volumetric capacity – 6.5” dia for half - round
profile & 7” width for square profile • Made of Magnesium Aluminium
Alloy (AL Grade 3003) • Surface coated with premium weatherproof
Poly Ethylene paint
OTHER ACCESSORIES
13) TILE CLIP
Roof tile clips are used for securing the roof tiles at the valley areas in general and for all tiles on roofs in windy areas (eg. sea sides, high use buildings, top of hills, etc).
14) RIDGE CLIP
Holds ridge tiles together during dry fixing of ridge tile on ridge & hip lines of roofs.
15) EAVES FILLER COMB
Prevents insect intrusion from the eaves, while maintaining proper air ventilation.
16) RIDGE TREE
Ridge tree provides support to ridge runner over which compact roll is laid on the ridges and the hips.
